is a quick and easy way to check the integrity of the pipe models using
the CADWorx Database. With this tool you can quickly search through the
CADWorx database for any item using selected search criteria. Without
PipeDbase-Utility you would have to use Access and set up SQL queries
How many times have you got to the checking phase only to find out some of
the valves or pipe supports are tagged incorrectly. With
you can do a quick check any time during the project, to make sure things
are been done to comply with company standards and then a final check
before creating the isometrics for checking.

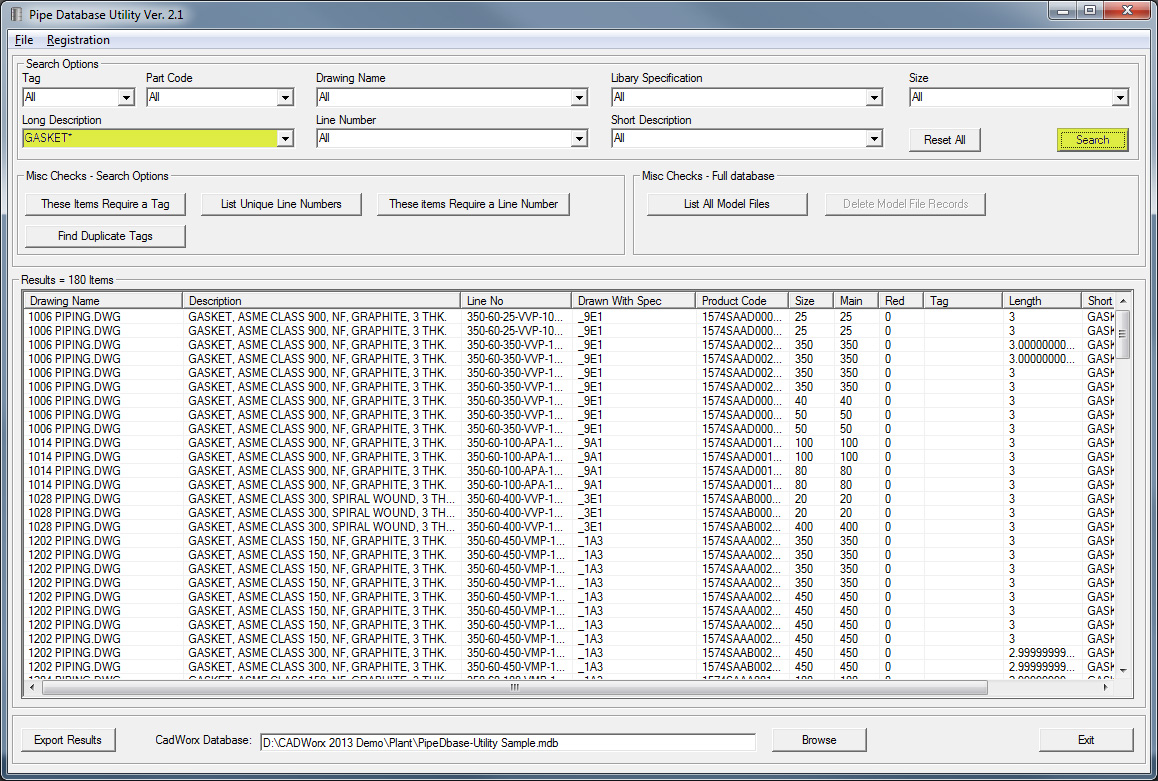

PipeDbase-Utility comes with a sample database to show what
you can achieve.
Key features include:
search the CadWorx Database for any item.
do not need CadWorx installed on the computer to open the Database.
a pipe model from the CadWorx Database.
search results by specifying search criteria.
for duplicate tags, especially useful for items like valves and pipe
supports, when you copy them from other pipe models.
for items without a line number.
for items that require a tag.
results to a CSV file to be opened in Excel.
unique line numbers.
unique pipe model files.
We can further customize PipeDbase-Utility to suit your company standards. For example if part of your line number is in the pipe support tag we can set up PipeDbase-Utility to check the pipe support tags against the line number.
Here is a sample of some other checks that can be performed, the list is
- Check line number against the pipe spec used in the model.
- Check line number against the model file name.
- Check line number against the pipe support tags.
- Check valve type and size against a list
- Check line number against P&ID
- Check valve tag against P&ID
- Check model length against schedule
- Convert tag $ to -
Donít delay download PipeDbase-Utility today and
put the CadWorx Database to work for you.
