PipeDbase-Utility Screen Shots

Click to enlarge
Search

PipeDbase-Utility allows you to search the entire database for any item. In the screen shot we have entered GASKET* into the long description. Your search results will now list all the gaskets in the Database, this can be further refined by selecting other criteria.



Require tag.jpg (321937 bytes)
Click to enlarge

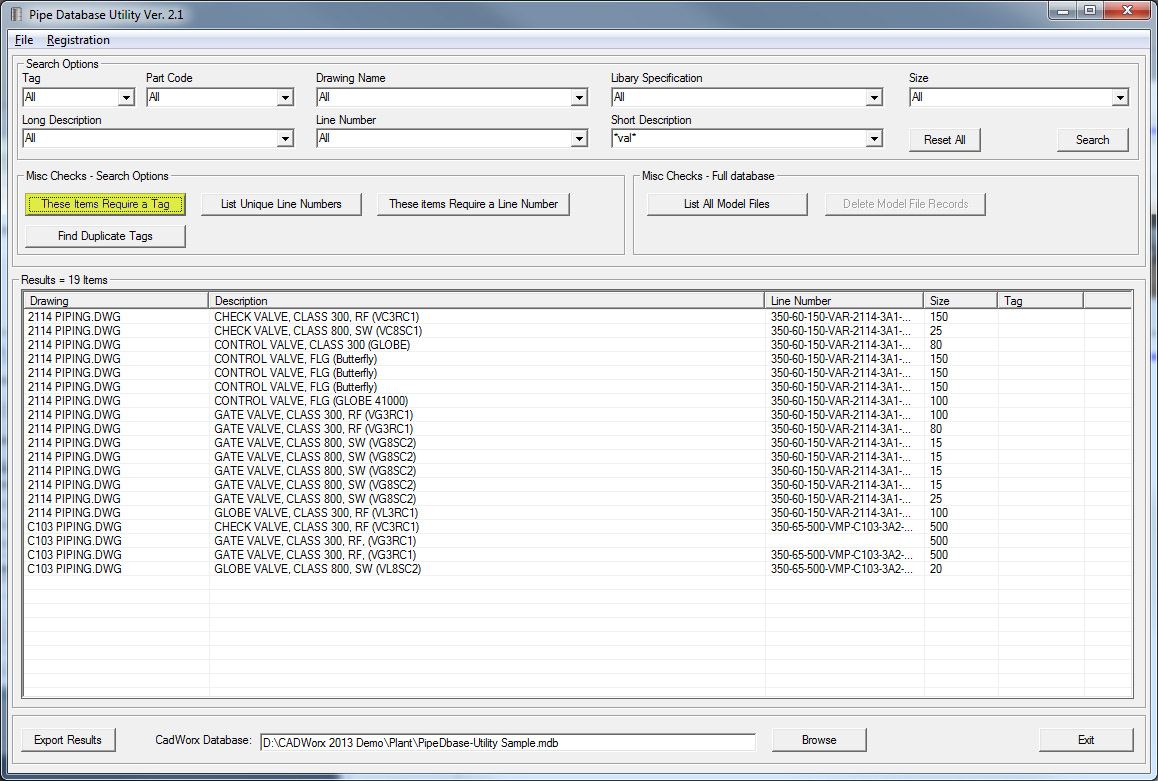

These Items Require a Tag:

Use the search criteria to select items that require a tag. In the screen shot we have selected *val* from the Short Description drop down list. When we click on the These Items Require a Tag button we get a list of all valves that have no tag allocated.



Duplicate Tags.jpg (433248 bytes)
Click to enlarge

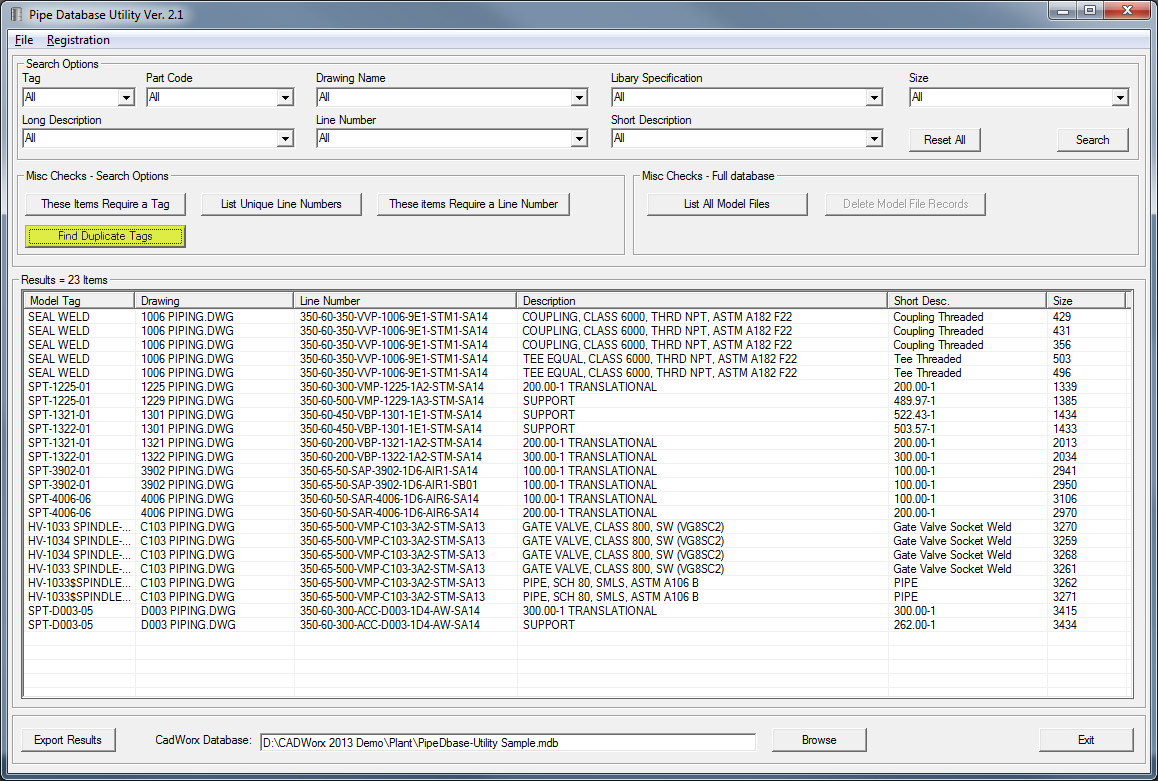

Find Duplicate Tags:

Use the search criteria to select items that you want to check for duplicate tags. In the screen shot we have not specified any search criteria, therefore the full database is checked for duplicate tags.



Unique Line Numbers.jpg (287276 bytes)
Click to enlarge

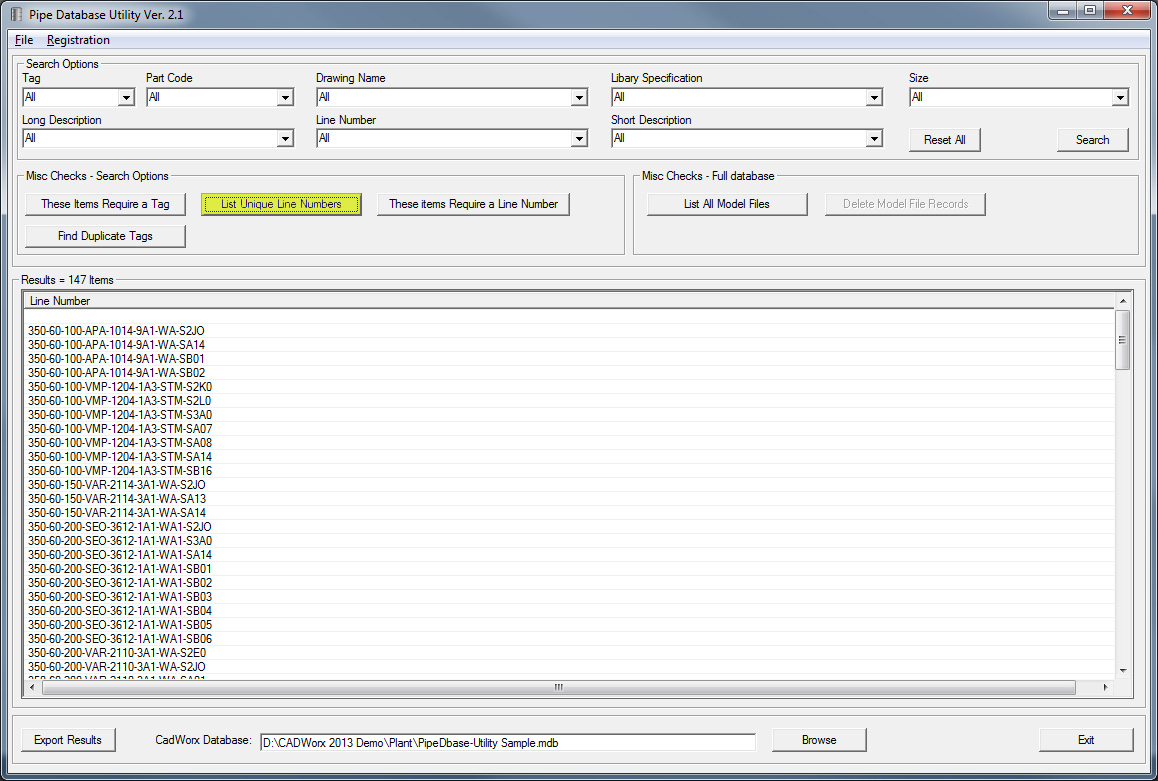

List Unique Line Numbers:

Using the search criteria you can all list the line numbers in the database or only a few depending on your search criteria. In the screen shot we have not specified any search criteria, therefore the full list of line numbers in the database is produced including blank lines



Require Line Number.jpg (310109 bytes)
Click to enlarge

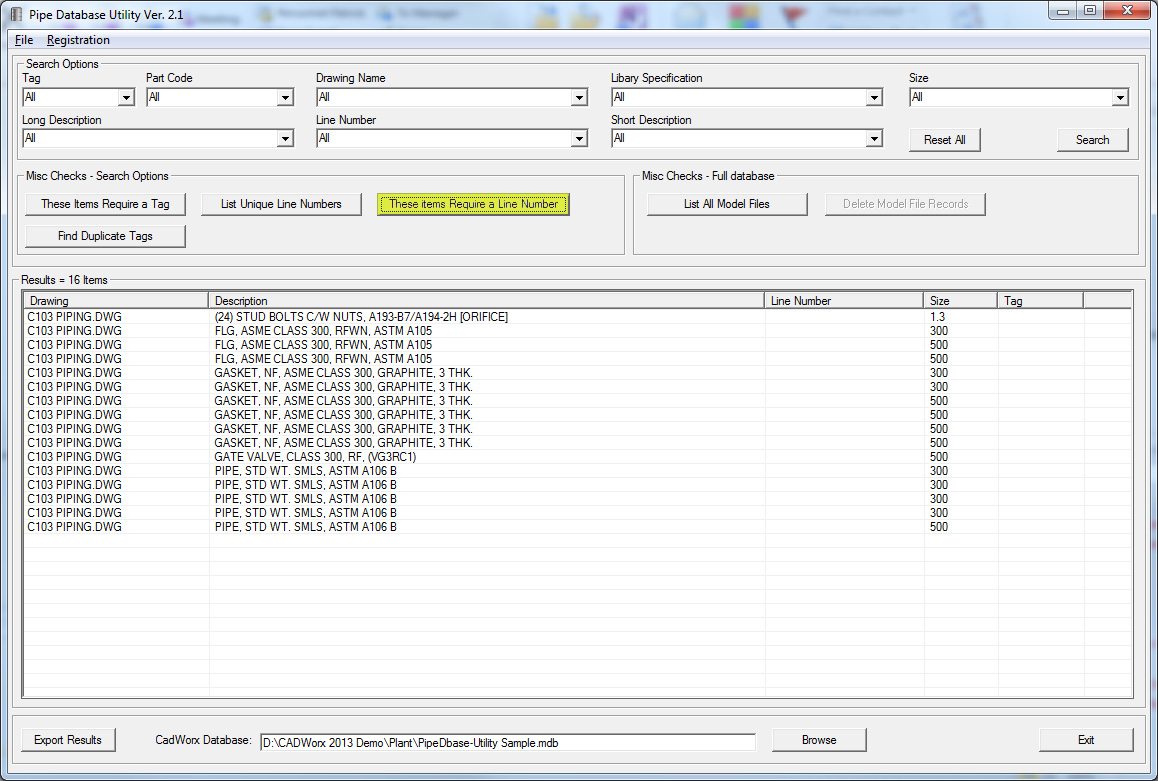

These Items Require a Line Number:

Using the search criteria you can list all items that are missing line numbers. In the screen shot we have not specified any search criteria therefore we get a list of all items in the database, that do not have a line number.



Model Files.jpg (236774 bytes)
Click to enlarge

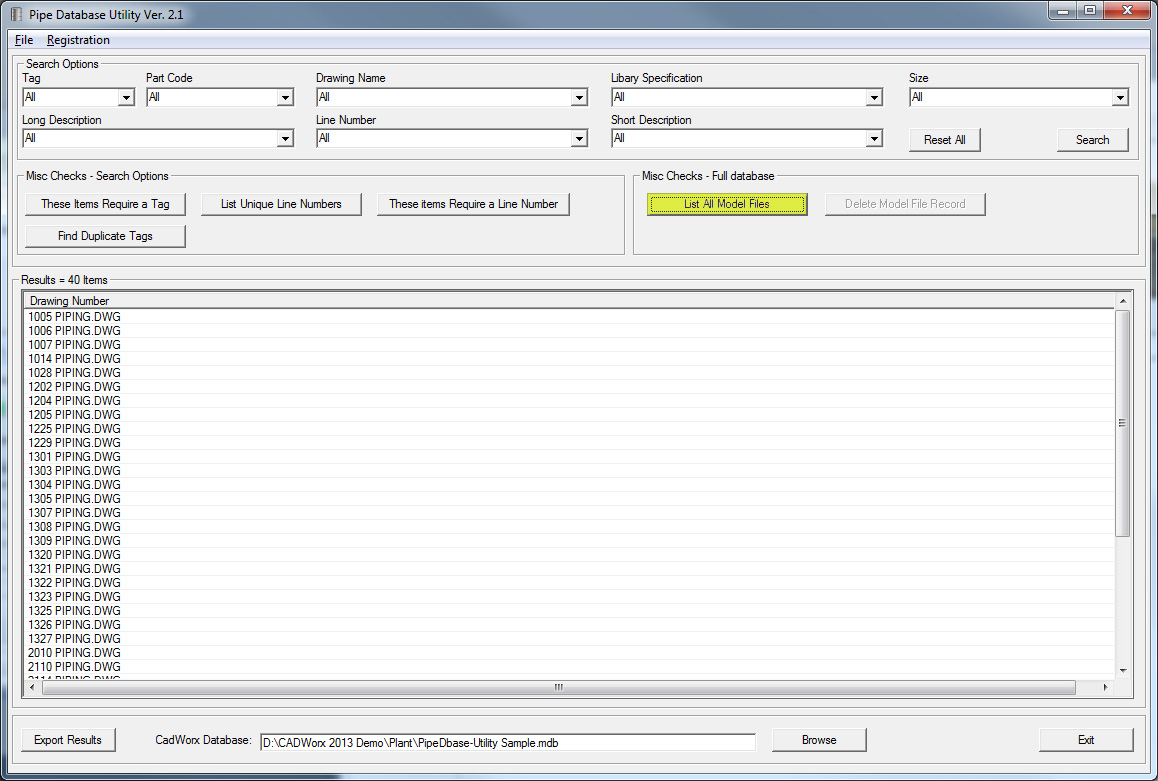

List All Model Files:

This lists all model files in the database.



Delete Model from Database.jpg (244934 bytes)
Click to enlarge

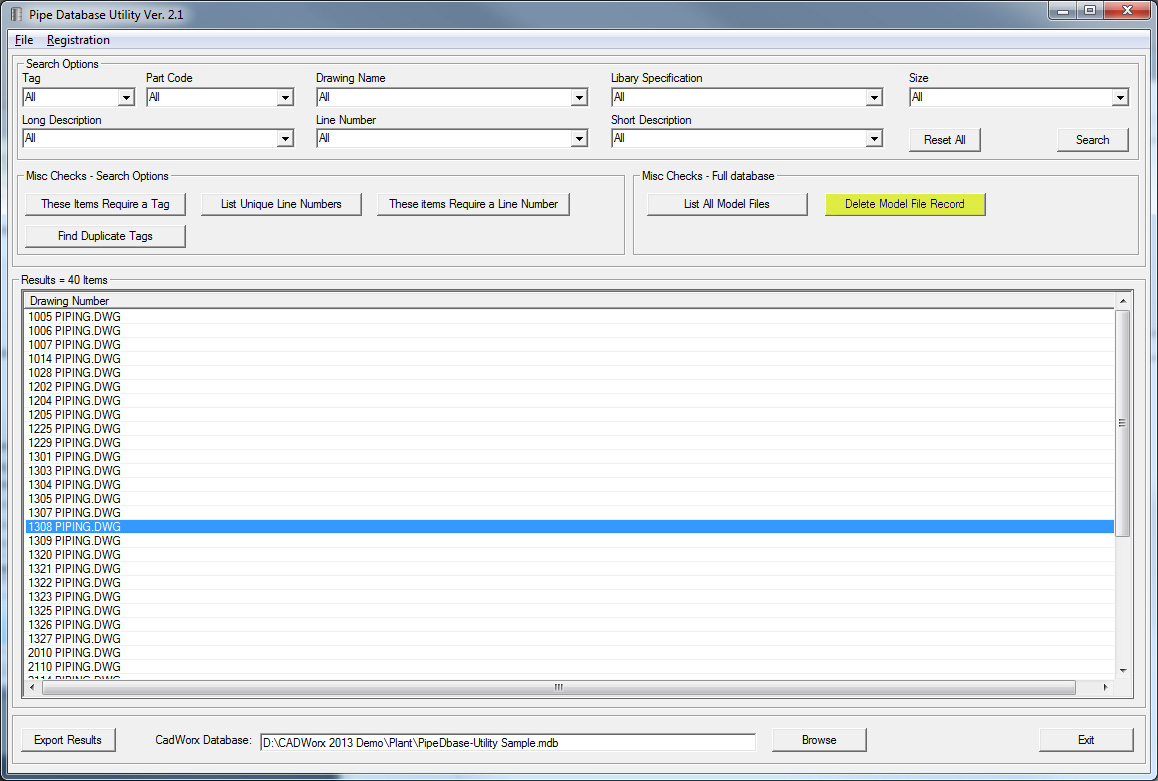

Delete Model File Record:

To delete a pipe model file from the database you first have to list all the model files. Then select the pipe model you want to delete from the database and click on the Delete Drawing File Record Button. All records associated with this model file will be deleted from the database only
